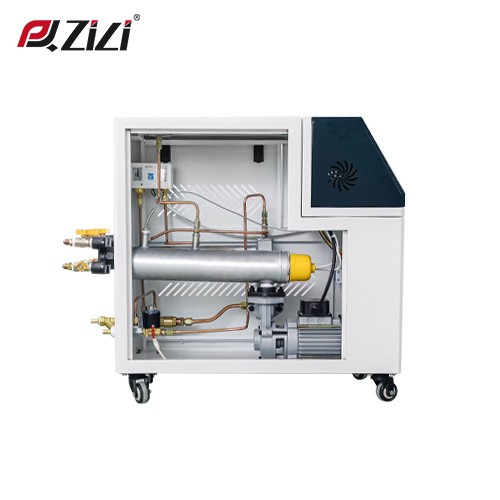

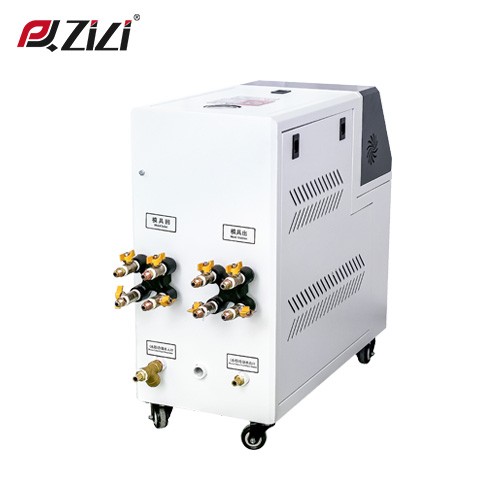

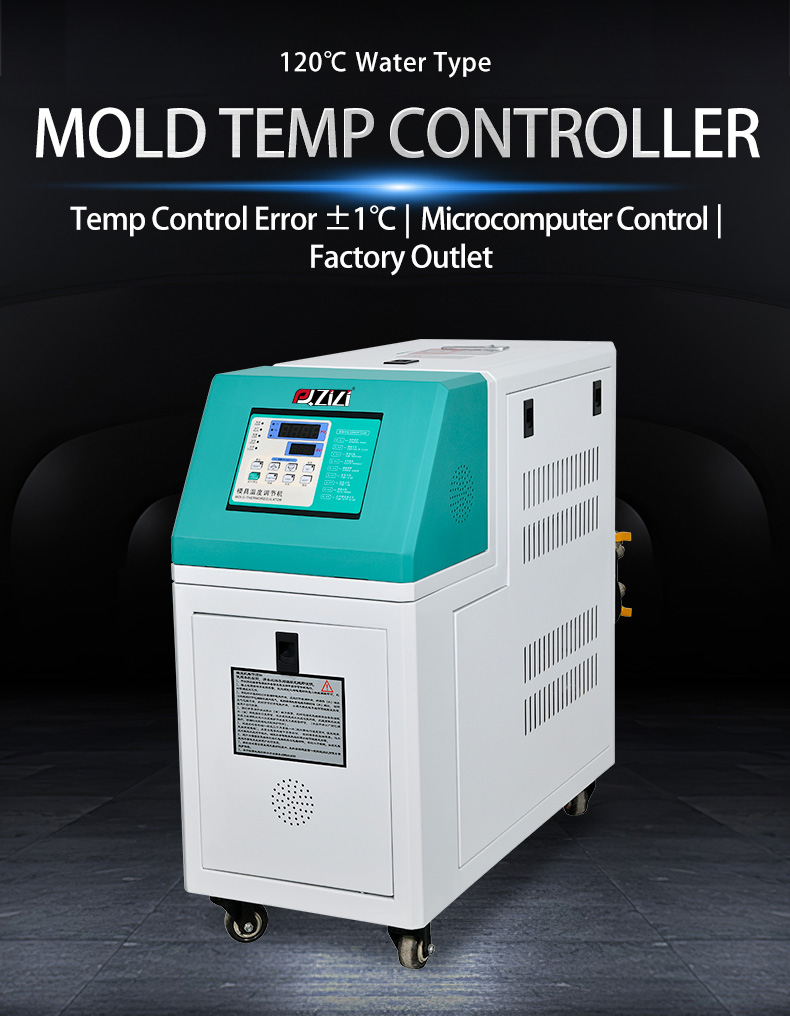

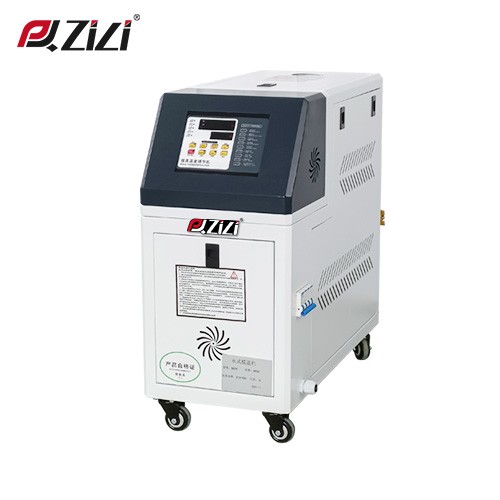

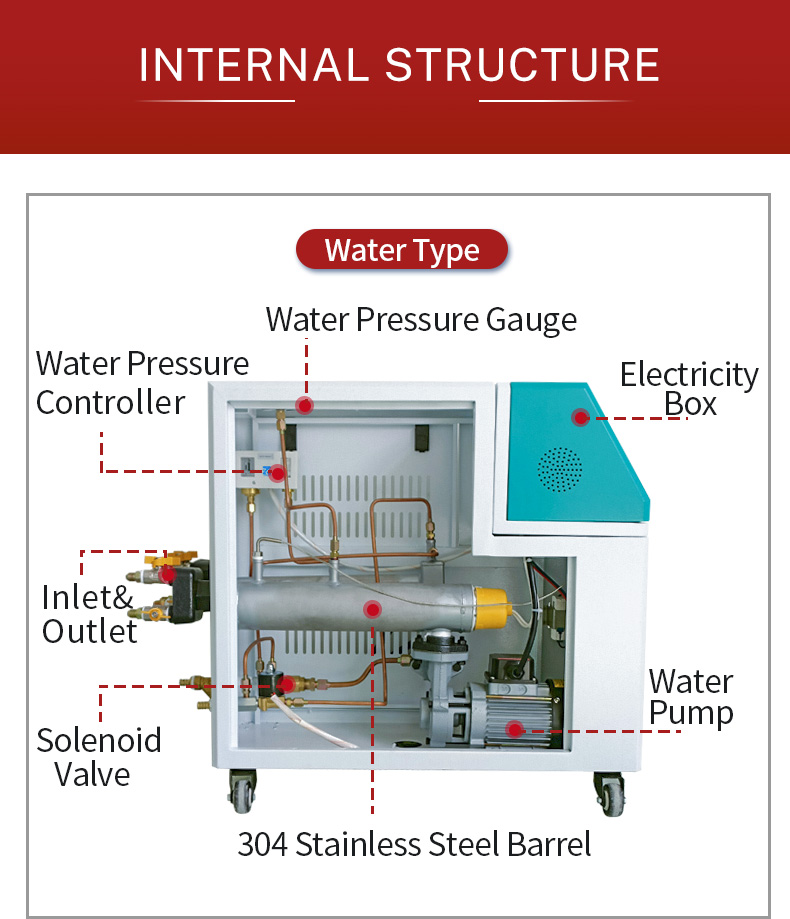

Water Type Mold Temperature Controller |
|||||
| Model | PQ-ZL06KWW | PQ-ZL09KWW | PQ-ZL12KWW | PQ-ZL18KWW | PQ-ZL24KWW | PQ-ZL36KWW |
| Transfer Medium | Water | |||||
| Maximum Temperature | 120℃ | |||||
| Heating Power(KW) | 6 | 9 | 12 | 18 | 24 | 36 |

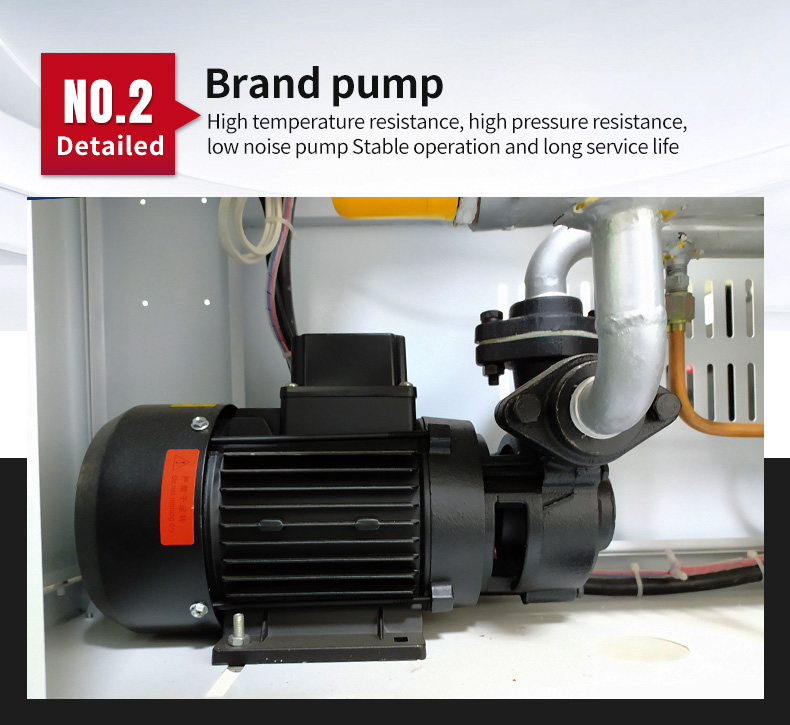

| Pump(KW) | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 |
| Pump Flow(L/Min) | 40 | 40 | 75 | 235 | 235 | 315 |
| Loading Distance(M) | 22 | 22 | 25 | 21 | 21 | 22 |

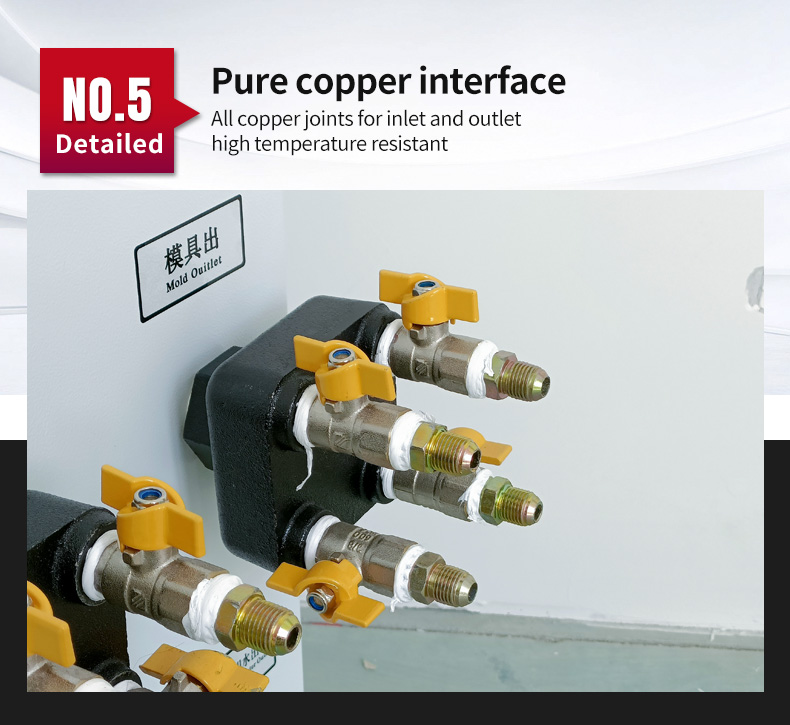

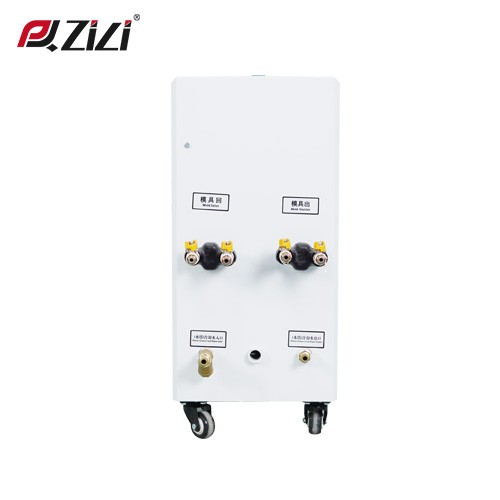

| Inlet/Outlet Diameter(Inch) | φ3/8"*4 | φ3/8"*8 | φ3/8"*8 | φ3/8"*8 | φ3/8"*8 | φ3/4"*2 |
| Dimension(CM) | 67*31*61 | 67*31*61 | 67*31*61 | 87*40*80 | 87*40*80 | 87*40*80 |
| Net Weight(KG) | 50 | 54 | 58 | 70 | 80 | 120 |
