What is a hopper dryer?

Hopper dryer is one of the essential auxiliary machines in the injection molding industry. It can be used to drying materials more quickly when preparing for the next production. The hopper dryer produced by our company belongs to the hot air dryer, which uses the principle of heat pump and sensible heat transfer technology to provide hot air.

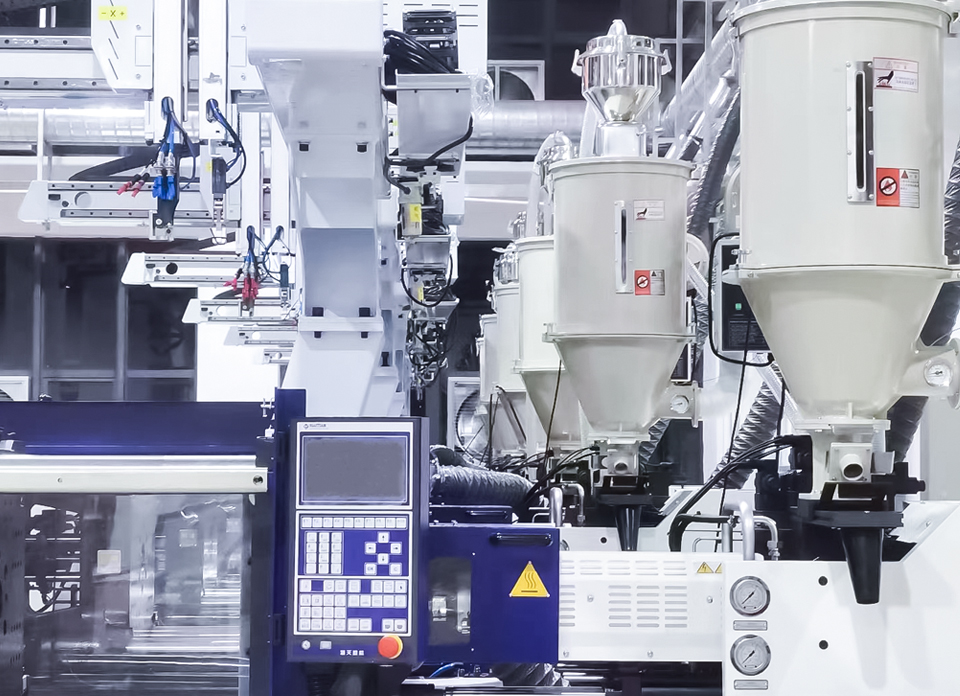

It can greatly improve the efficiency of injection molding production. And the hopper dryer can be directly installed on the injection molding machine that not only has high drying efficiency but also saves space.

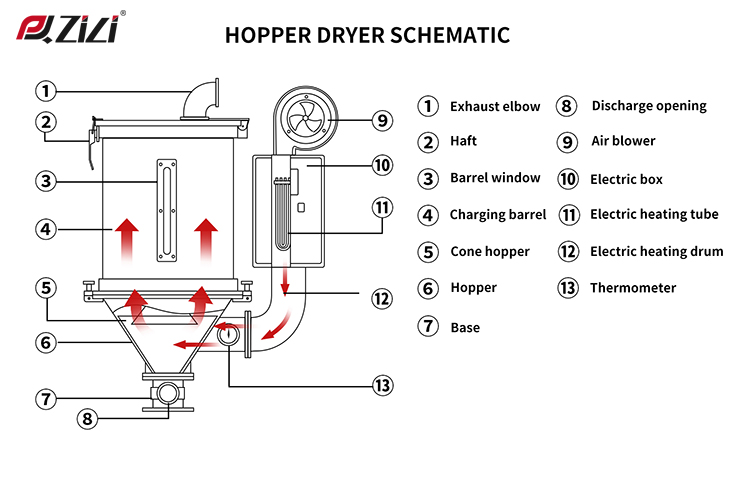

The working principle of hopper dryer

In the processing of raw materials, the hopper dryer blows constant hot air into the drying barrel through the drying fan. After baking the raw materials, the original moisture can be taken away. Also after electric heating, the air blown by the hopper drying fan can be evenly dispersed in the drying barrel, and the raw material in the barrel is dried by the hot air.

If needed, we can also provide a dryer with recovery function, so that the blown air through the return air filtration into the dryer to form a closed circulation loop, and to achieve the purpose of saving electricity.

Application range of hopper dryer

At present, the role of the hopper dryer in drying plastic raw materials is the most significant, and it can dry raw materials that are wet for various reasons. The straight-junction design is especially suitable for drying directly on the plastic molding machine, which is fast and space-saving, cost-effective, and basically suitable for all rubber and plastic manufacturers.

Characteristics of hopper dryer

• Our hopper dryer has the design of stainless steel body, aerogel mat insulation layer, high-life heating pipe and intelligent temperature control, so that our product is more energy saving on the basis of the original design. It also has the advantages of long service life, corrosion resistance and no pollution of plastic particles, which can directly replace the old machine.

• The barrel is separated from the bottom, making it easy to clear the material and quick to refuel.

• Our hopper dryer adopts the high performance hot air diffusion device of evenly dispersed hot air to keep the plastic drying temperature uniform and increase the drying efficiency.

• Fan with overheating protection, improve the production fault tolerance rate.

• Each dryer has timing function, which is convenient for subsequent drying operation.

Parameters of hopper dryer

Model	Voltage	Capacity(KG)	Heating Power(KW)	Blower Power(KW)	Dimensions (CM)	Base Size   (CM)	Net Weight (KG)
PQ-ZL12HD	220V/50hz/1N	12	2.3	0.075	64*44*85	11*11*Φ4	22
PQ-ZL25HD		25	3.5	0.122	76*50*104	16*16*Φ6.2	34
PQ-ZL50HD	380V/50hz/3N	50	4.5	0.157	87*54*121	16*16*Φ7	45
PQ-ZL75HD		75	6.5	0.157	94*60*131	16*16*Φ7	56
PQ-ZL100HD		100	6.5	0.246	101*70*141	18*18*Φ8	68
PQ-ZL150HD		150	9	0.35	110*74*162	20*20*Φ8.8	78
PQ-ZL200HD		200	12	0.35	118*84*176	23*23*Φ11.5	110
PQ-ZL300HD		300	15	0.75	142*100*183	27.5*27.5*Φ12	152
PQ-ZL400HD		400	15	0.75	148*106*202	27.5*27.5*Φ12	170
PQ-ZL600HD		600	20	1.1	158*116*240	28*28*Φ13.5	280
PQ-ZL800HD		800	30	2.2	183*128*248	35*35*Φ13.5	460
PQ-ZL1000HD		1000	40	2.2	202*142*248	50*50*Φ13.5	680
PQ-ZL1500HD		1500	50	3	204*142*319	50*50*Φ13.5	800

The above is the detailed description of our hopper dryer. if you need this product or have any of the questions for this article, welcome to contact us, and we will reply you as soon as possible.
