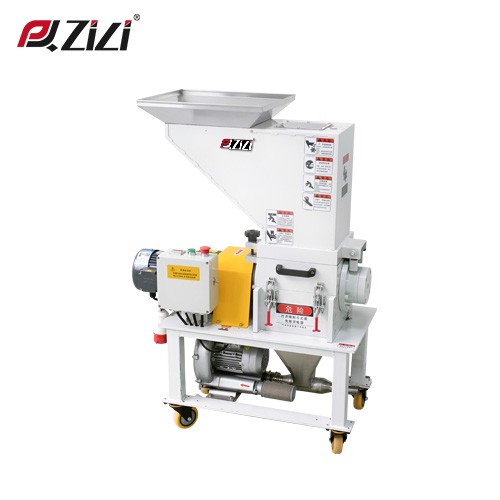

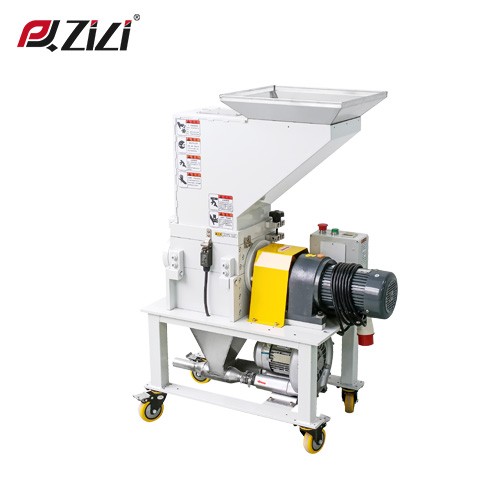

Low Speed Powerful Crusher Specification |
|||||
| Model | Product name | PQ-ZL01HP | PQ-ZL02HP | PQ-ZL03HP | PQ-ZL04HP | PQ-ZL05HP |
| Power | Voltage |
3N/380V/50hz
|
||||
| Power Comsumption(KW) | 1.1 | 1.5 | 2.2 | 2.2 | 4 | |
| HP | 1 | 2 | 3 | 3 | 5 | |
| Spindle Speed (RPM) | 20 | 20 | 20 | 20 | 20 | |

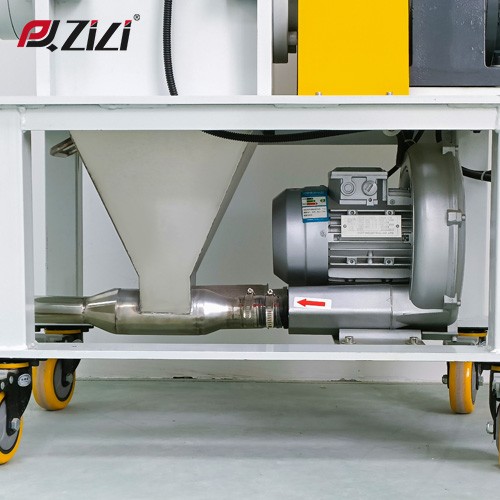

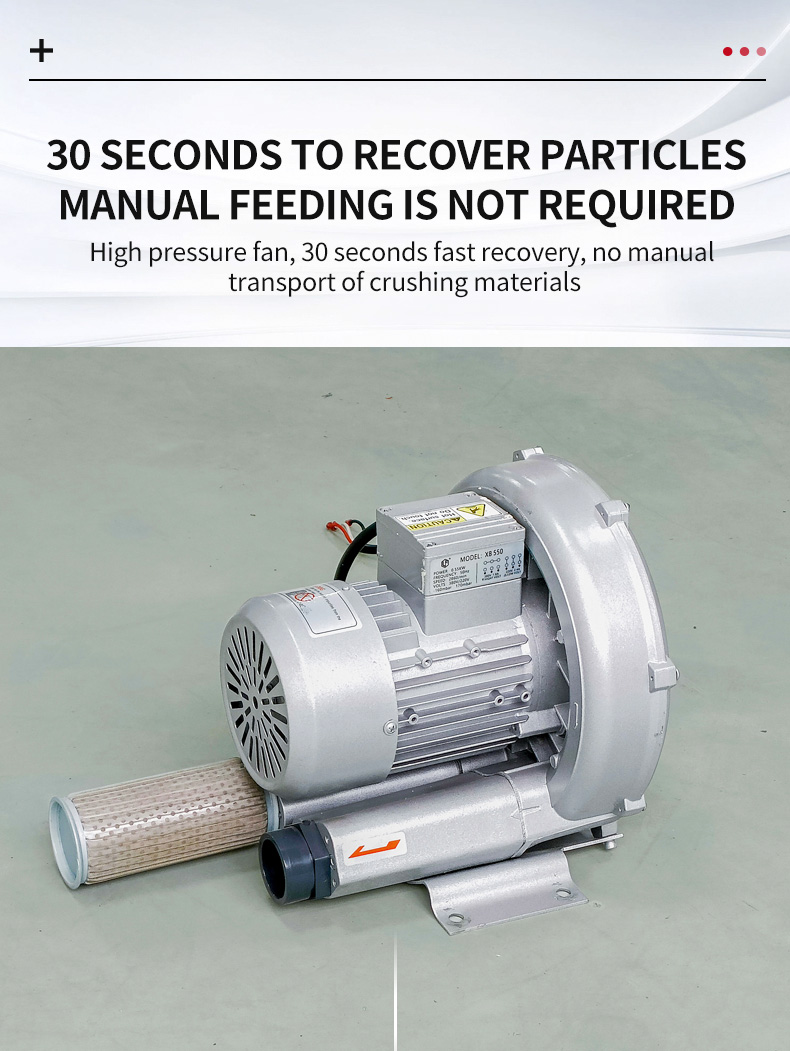

| Fun(KW) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | |
| Feeding Hopper Size | Dimension（MM） | 250*315 | 320*320 | 320*420 | 340*420 | 410*470 |
| Grinding Capacity | KG/HOUR | 10~15 | 20~25 | 22~27 | 22~27 | 30~35 |

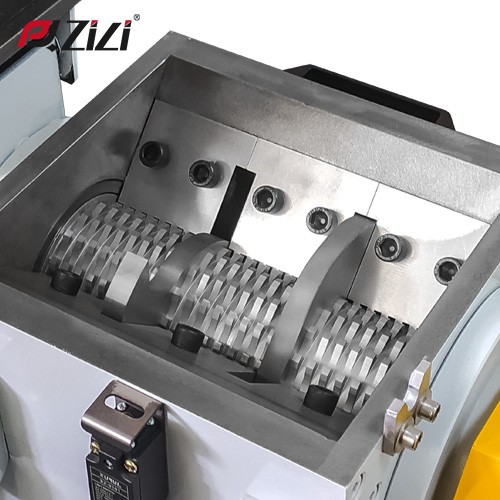

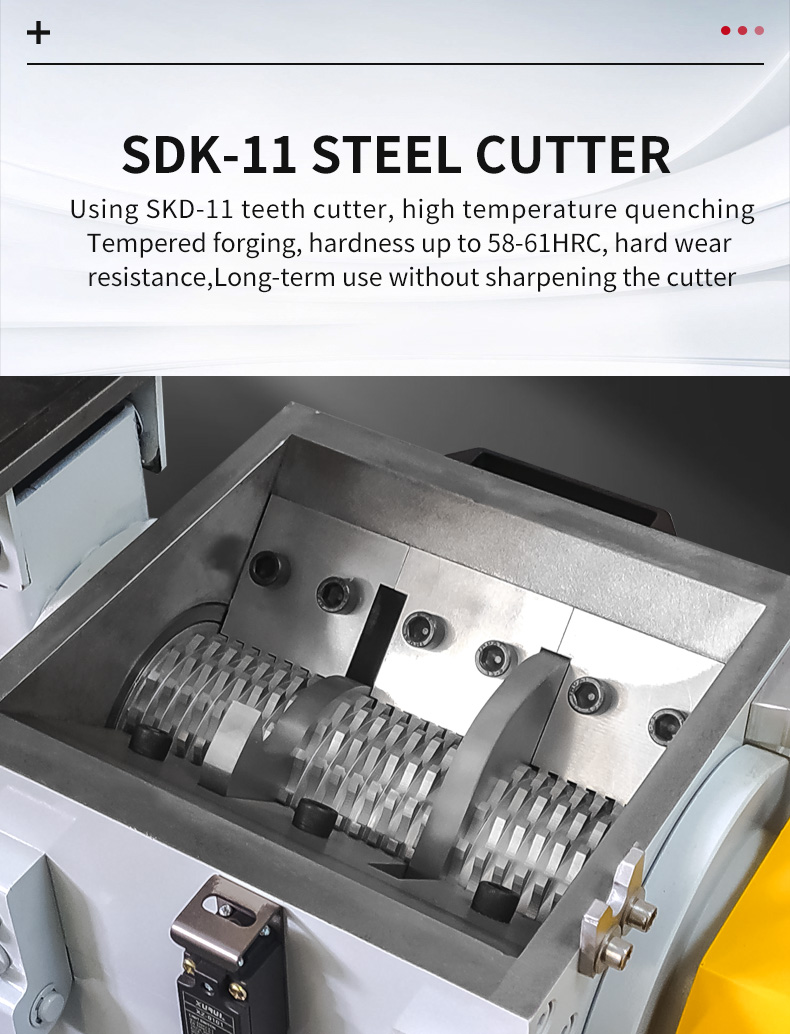

| Cutter Type | Clamp Cutter(Pics) | 6 | 6 | 8 | 8 | 8 |
| Teeth Cutter(Pics) | 3 | 3 | 4 | 4 | 4 | |
| Hook Cutter(Pics) | 2 | 2 | 3 | 3 | 3 | |

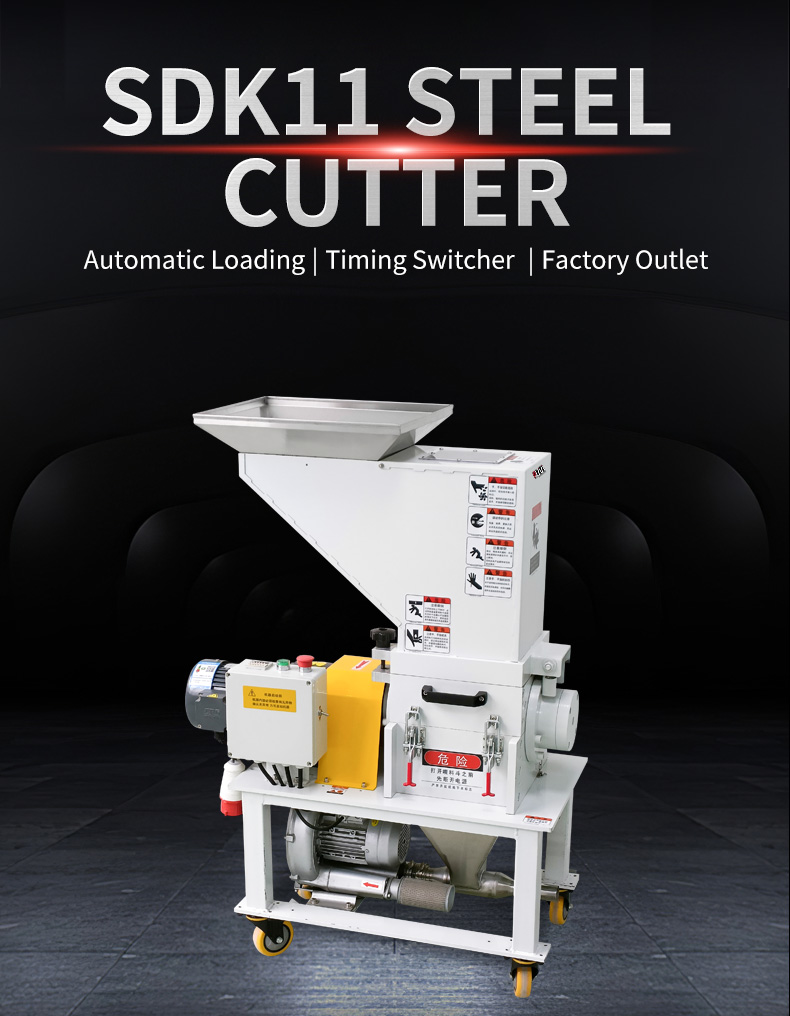

| Material | SDK-11 | SDK-11 | SDK-11 | SDK-11 | SDK-11 | |

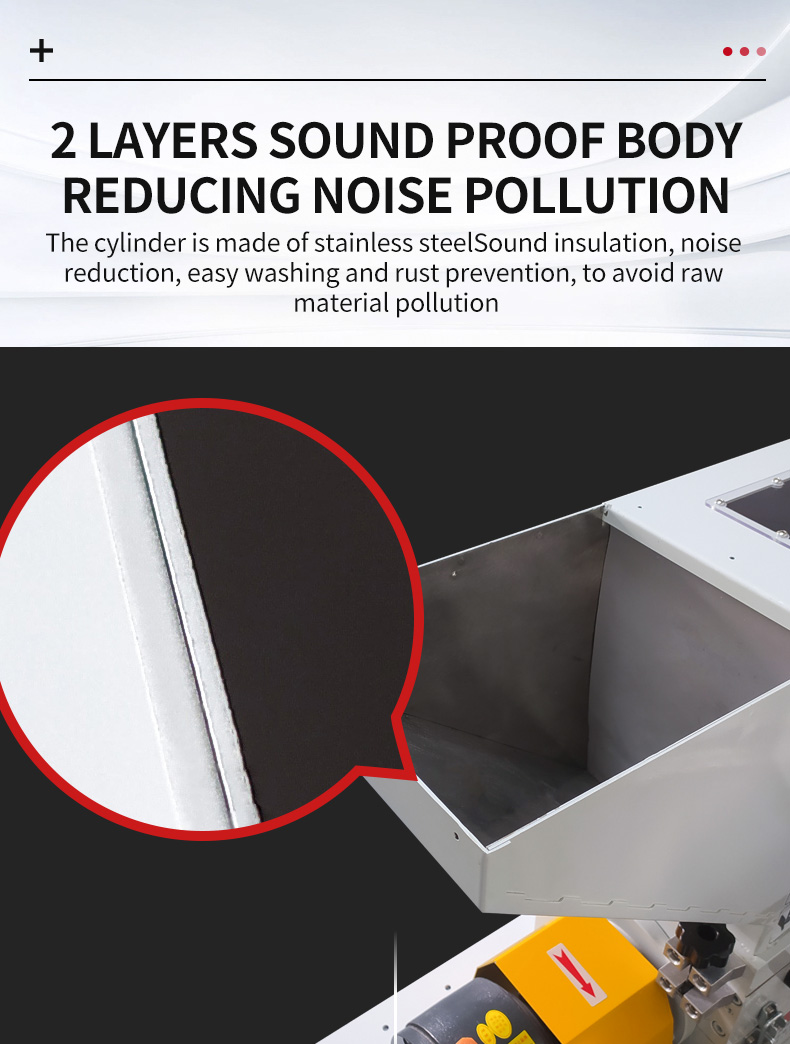

| Noise | Decibel | 85 | 85 | 85 | 85 | 85 |
| Whole Machine | Dimension（CM） | 90*44*118 | 105*48*122 | 122*48*125 | 122*50*130 | 125*56*166 |
| Net Weight | KG | 150 | 200 | 260 | 300 | 750 |
