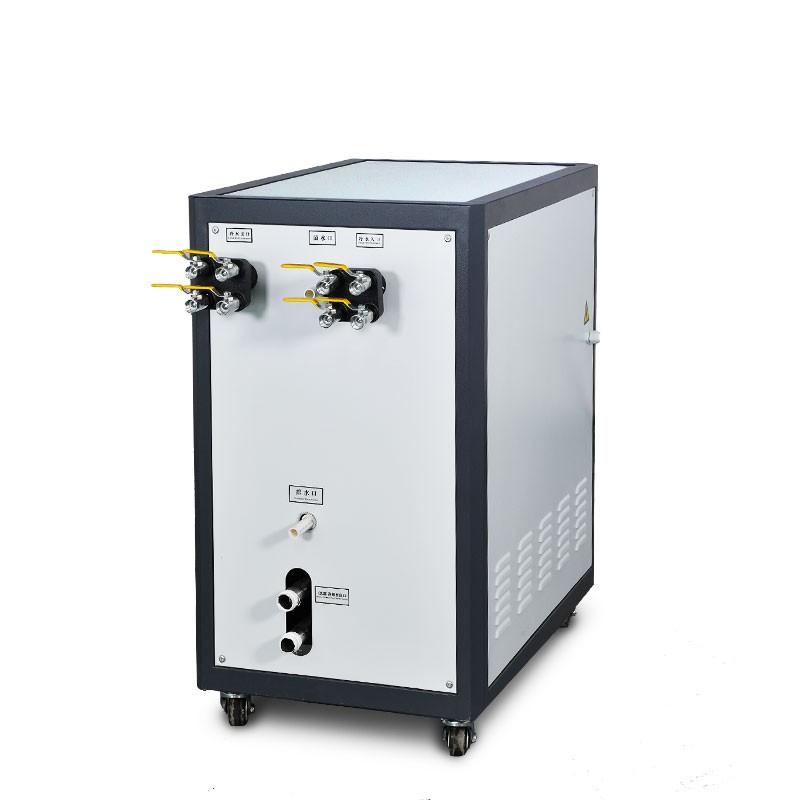

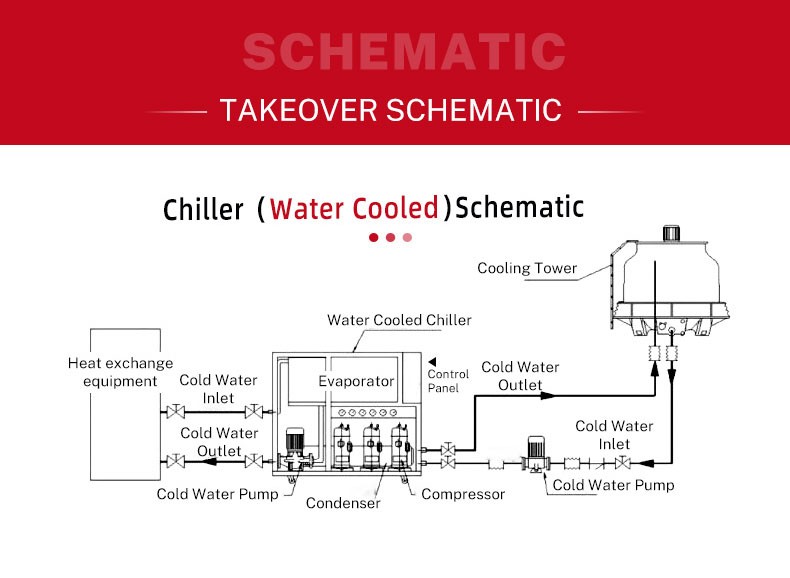

Water Cooled Industrial Chiller Specification | ||||
| Model | Product name | PQ-ZL05W | PQ-ZL06W | PQ-ZL08W | PQ-ZL10W |
| Power | Voltage | 3N/380V 50HZ | |||
| Cooling Capacity | Kcal/H | 12900 | 15480 | 20640 | 25800 |
| KW | 15 | 18 | 24 | 30 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） | |||
| Refrigerant | Name | R22(Or R134a/R407c) | |||
| Control Method | Capillary Tube | ||||

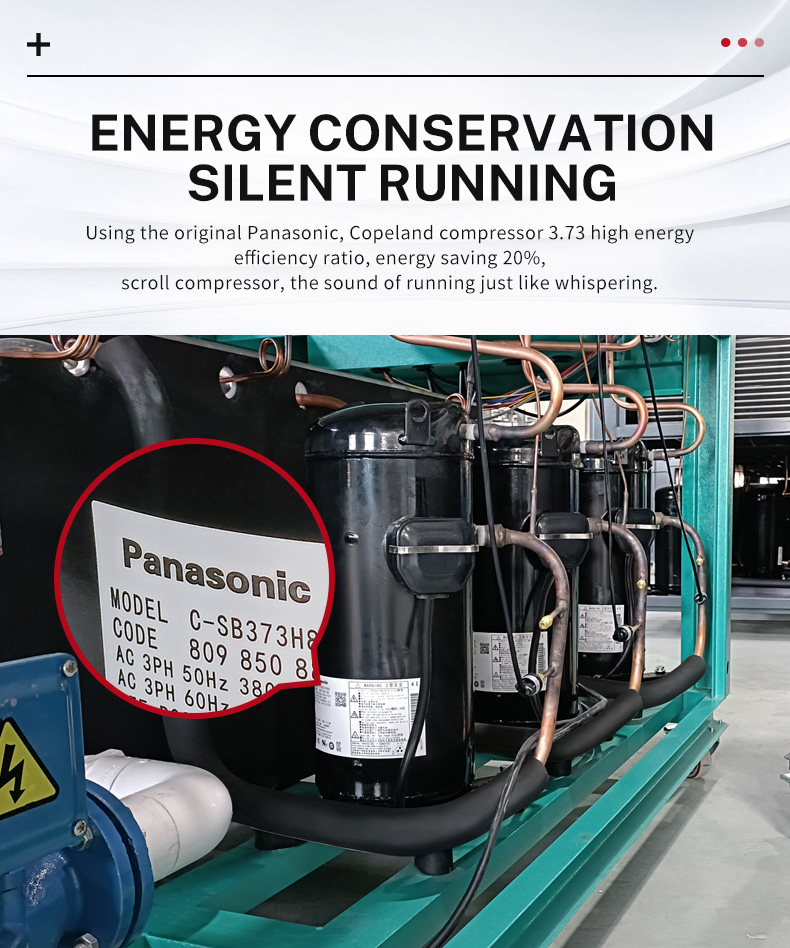

| Compressor | Type | Hermetic Scroll Type or Piston Compressor | |||
| Brand | Panasonic | ||||
| Power(KW) | 2.2 | 3.75 | 4.5 | 6 | |

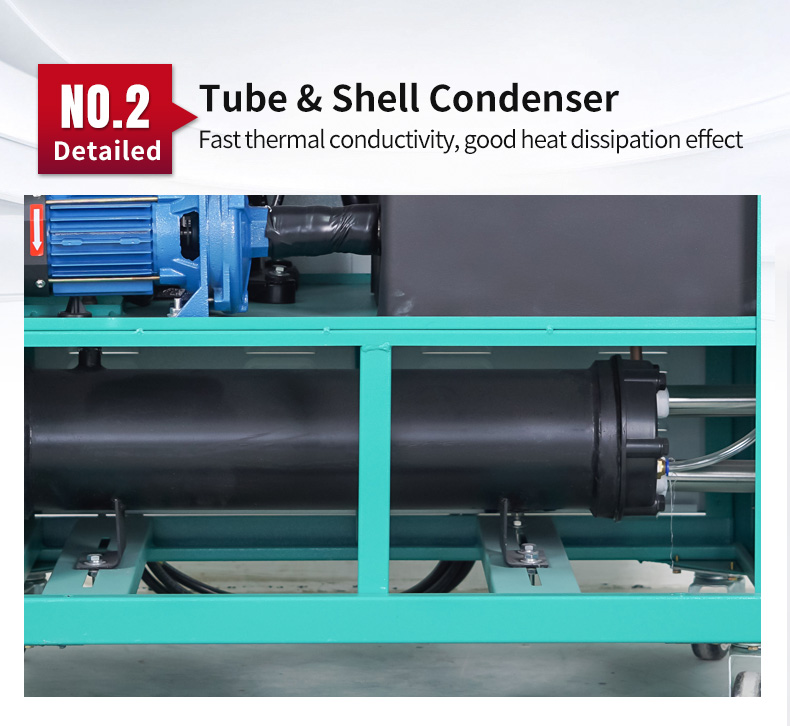

| Condenser | Form | Straight Tube | |||
| Evaporate | Water Volume(M³/H) | 1.65 | 2.75 | 3.3 | 4.27 |
| Water Tank Volume(L) | 60 | 70 | 120 | 140 | |

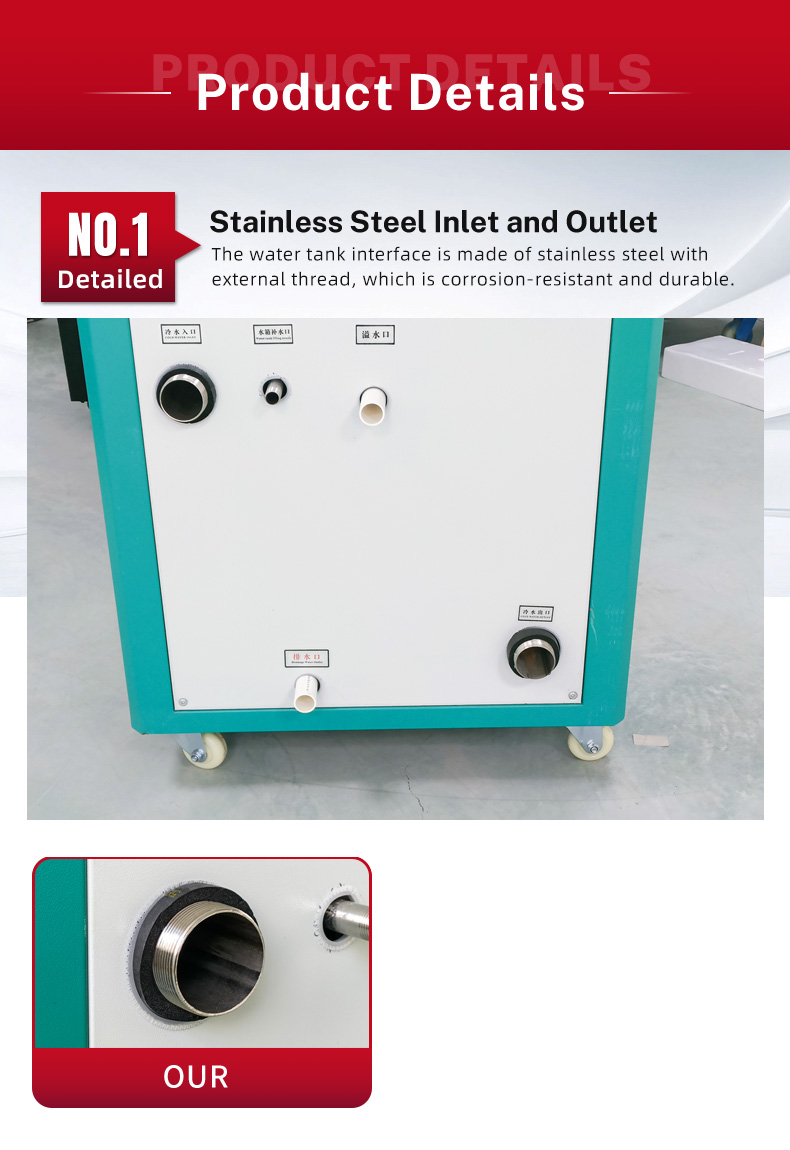

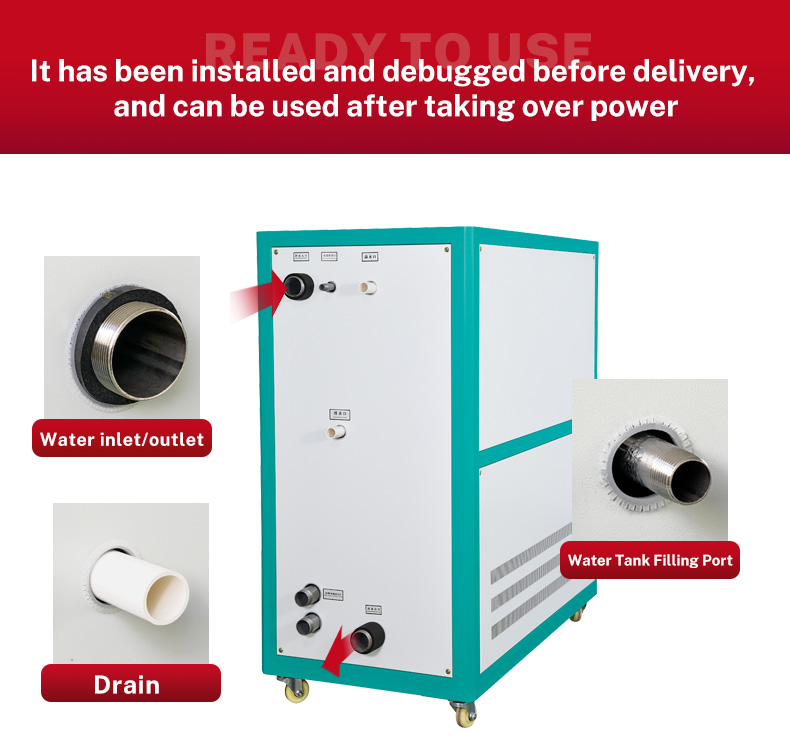

| Inlet/Outlet (DN) | 25 | 25 | 40 | 50 | |

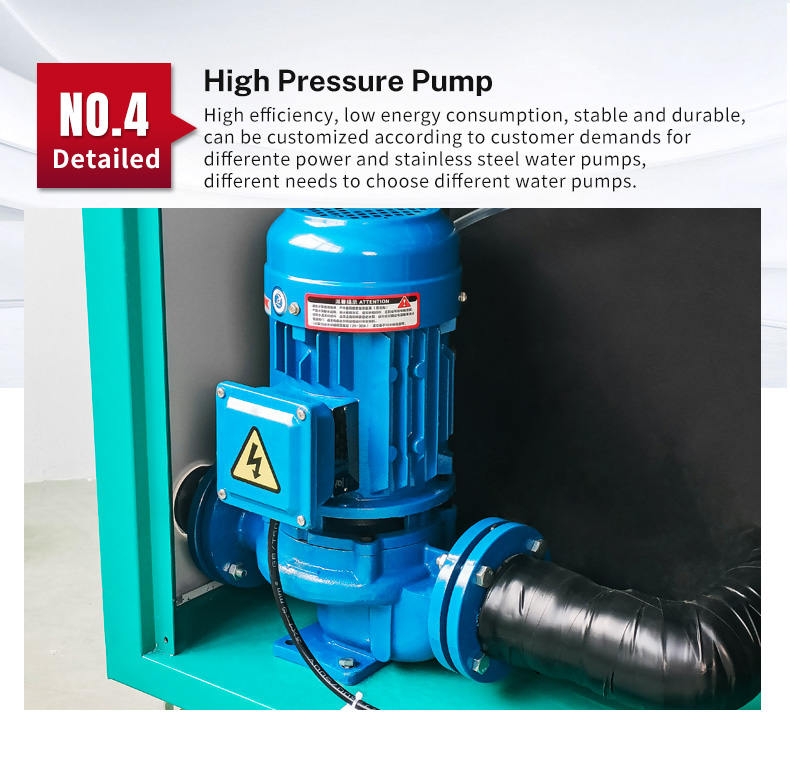

| Circulating Pump | Water Flow | 100(L/min) | 100(L/min) | 150 | 200(L/min) |
| Power(KW) | 0.37 | 0.37 | 1.1 | 1.5 | |
| Convey Water（M） | 18 | 20 | |||
| Brand | Auyuan | ||||
| Whole Machine | Weight（KG） | 170 | 170 | 300 | 380 |
| Dimension（CM） | 87*55*100 | 87*55*100 | 130*60*136 | 130*68*141 | |

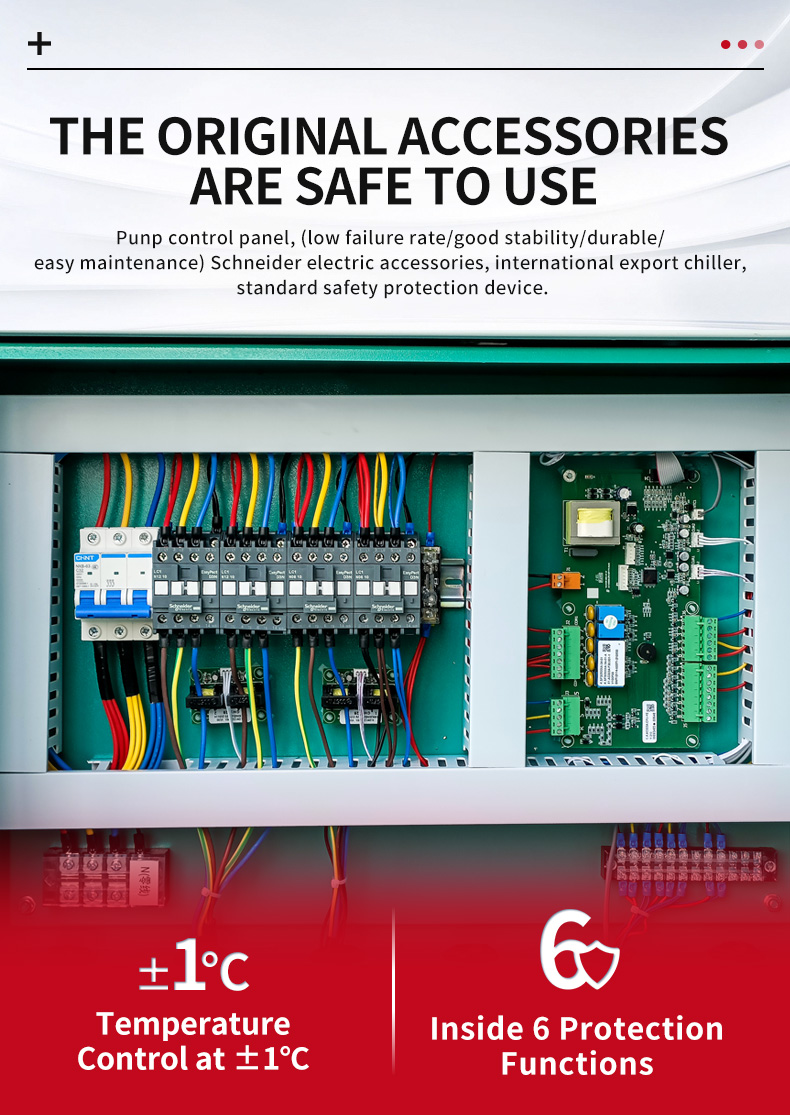

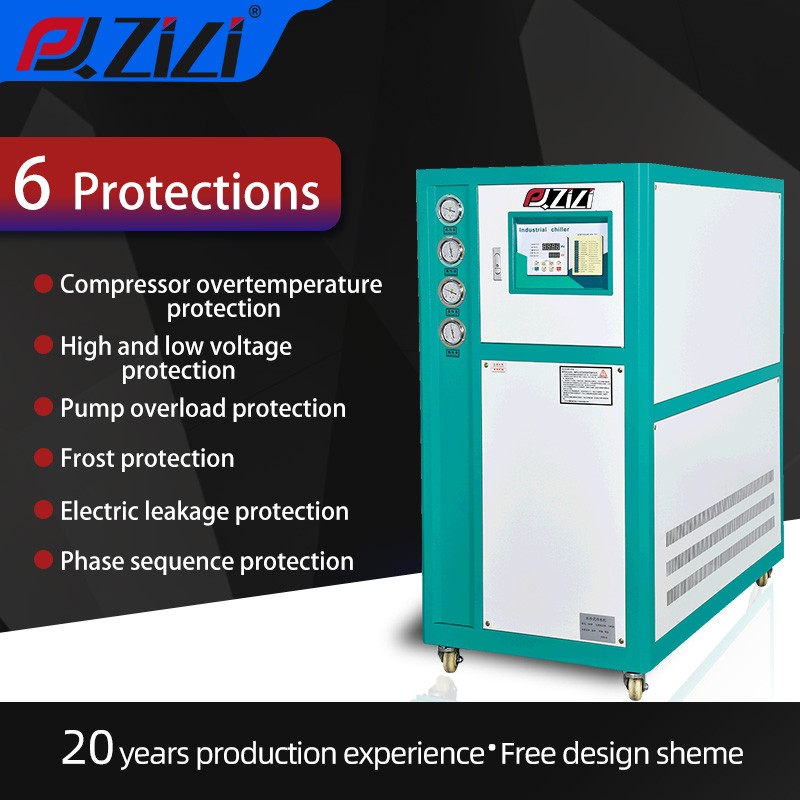

| 6 Safety Protections | Compressor overheating Protection,High & Low Voltage Fault Alarm,Cryogenic Anomaly Alarm,Pump Overload Protection,Earth Leakage Protection,Phase Reverse Protection | ||||
 |
Water Cooled Industrial Chiller Specification |
|||||
| Model | Product name | PQ-ZL15W | PQ-ZL20W | PQ-ZL25W | PQ-ZL30W | PQ-ZL40W |
| Power | Voltage | 3N/380V 50HZ | ||||
| Cooling Capacity | Kcal/H | 38700 | 51600 | 64500 | 77400 | 103200 |
| KW | 45 | 60 | 75 | 90 | 120 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） | ||||
| Refrigerant | Name | R22(Or R134a/R407c) | ||||
| Control Method | Capillary Tube | Expansion Valve | ||||
| Compressor | Type | Hermetic Scroll Type or Piston Compressor | ||||
| Brand | Panasonic | Copeland | ||||
| Power(KW) | 9 | 11.25 | 15 | 18.75 | 22.5 | |
| Condenser | Form | Straight Tube | ||||
| Evaporate | Water Volume(M³/H) | 6.59 | 8.62 | 11.55 | 14.03 | 17.8 |
| Water Tank Volume(L) | 230 | 300 | 300 | 350 | 600 | |
| Inlet/Outlet (DN) | 50 | 65 | 65 | 80 | 80 | |
| Circulating Pump | Water Flow | 340(L/min) | 340(L/min) | 500(L/min) | 800(L/min) | 800(L/min) |
| Power(KW) | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Convey Water（M） | 20 | 22 | ||||
| Brand | Auyuan | |||||
| Whole Machine | Weight（KG） | 540 | 720 | 700 | 870 | 1420 |
| Dimension（CM） | 152*75*141 | 183*75*163 | 183*75*163 | 200*86*161 | 240*90*160 | |
| 6 Safety Protections | Compressor overheating Protection,High & Low Voltage Fault Alarm,Cryogenic Anomaly Alarm,Pump Overload Protection,Earth Leakage Protection,Phase Reverse Protection | |||||
