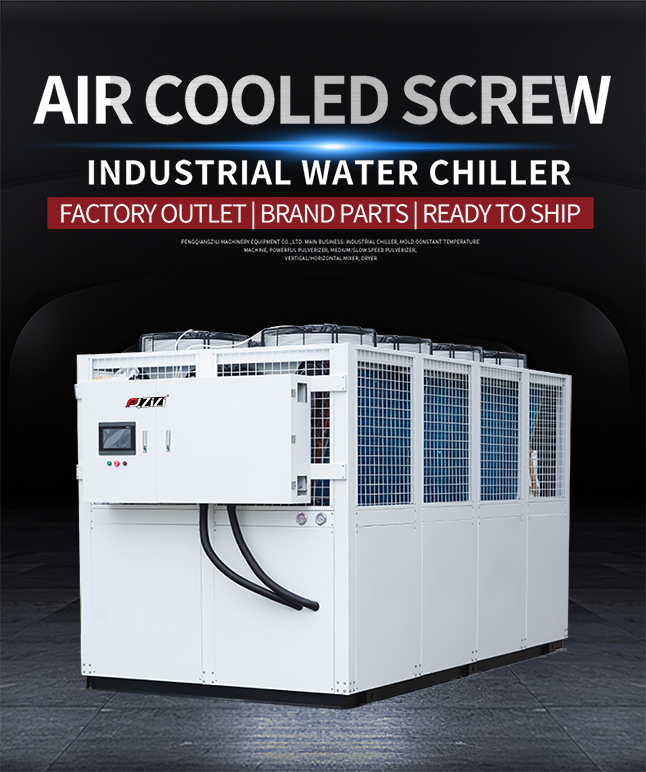

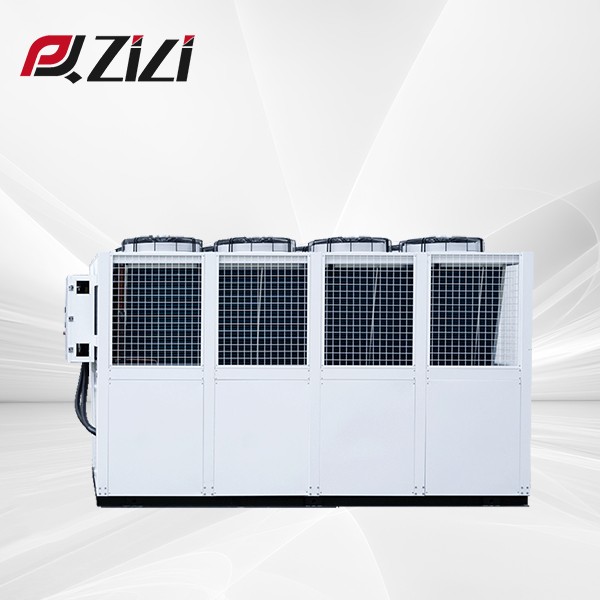

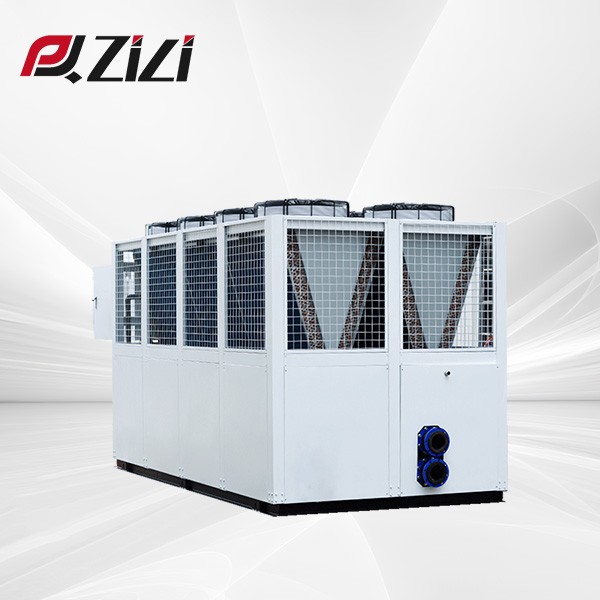

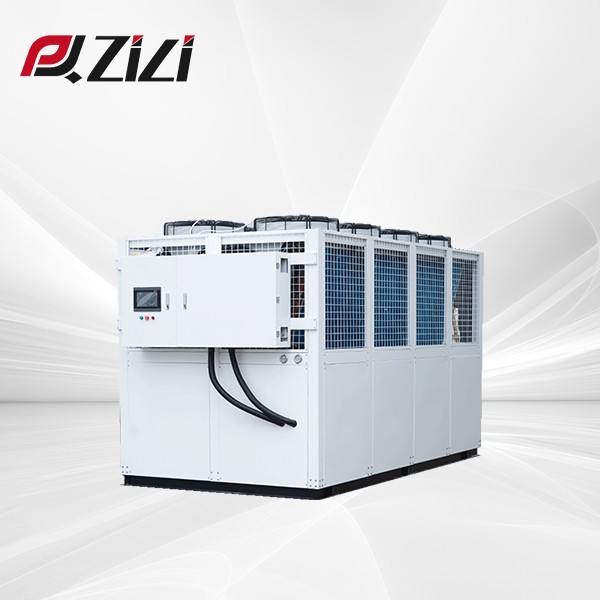

PengQiang ZiLi Air Screw Chiller

Product Parameters

	Air Cooled Screw Chiller Specification
Model	Product name	PQ-ZL25A(20Tons)	PQ-ZL40A(30Tons)	PQ-ZL50A(40Tons)	PQ-ZL75A(60Tons)	PQ-ZL100A(80Tons)	PQ-ZL125A(100Tons)	PQ-ZL150A(120Tons)	PQ-ZL200A(150Tons)
Power	Voltage	3N/380V/50HZ
Power Input	KW	22	38	47	69	99	120	142.5	178
Cooling Capacity	Kcal/H	62500	105000	126170	187500	250000	312500	375000	500000
Cooling Capacity	KW	70.5	112	140	210	280	350	420	560
Temperature Range	℃	5℃~35℃（Below 0℃ Could be customized）
Refrigerant	Name	R407C
Refrigerant	Control Method	Expansion Valve
Compressor	Type	Semi-Hermetic Screw Compressor
	Brand	Hanbell
	Start Model	Y-△start
	Capacity Control(%)	0-25-50-75-100
	Power(KW)	18.75	30	37	57	77	95.5	113.7	150

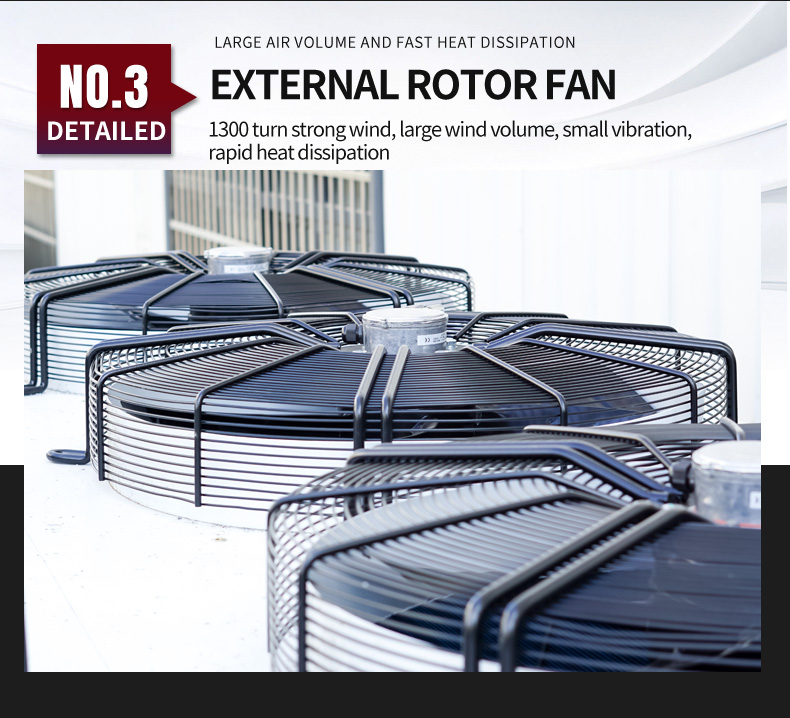

Draught Fans	Air Volume（M³/H)	26640	51000	51000	60000	110000	130000	150000	200000
	Power（KW）	0.9*4	0.66*6	0.66*6	0.9*6	1.022*8	1.126*8	1.7*8	1.7*10
	Dimension Fans（MM）	630*2	550*6	550*6	630*6	710*8	830*8	900*8	900*10
	Heat Dissipation Ambient Temperature	≤35℃

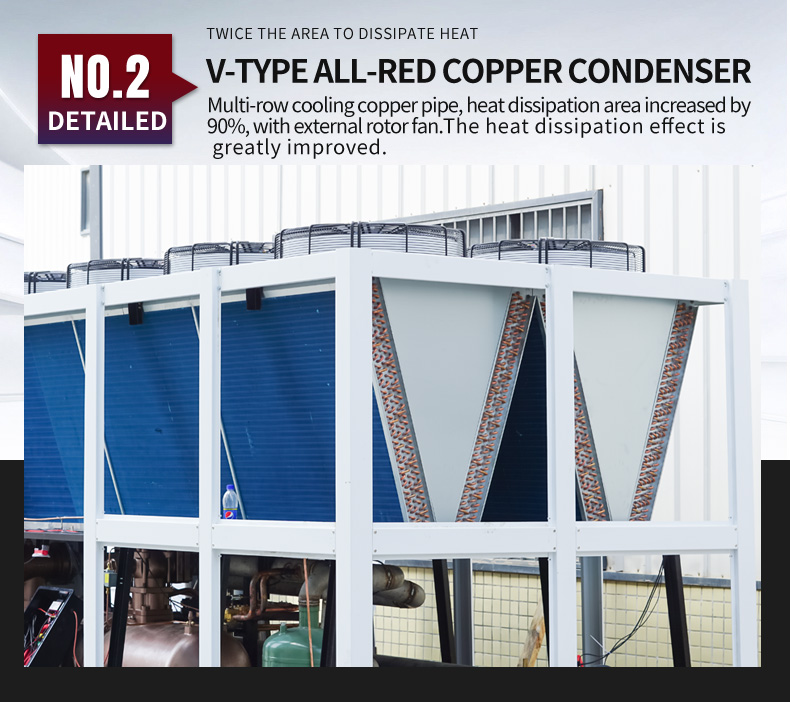

Condenser	Form	Efficient Brass Sets Coorrugated Aluminum Fin

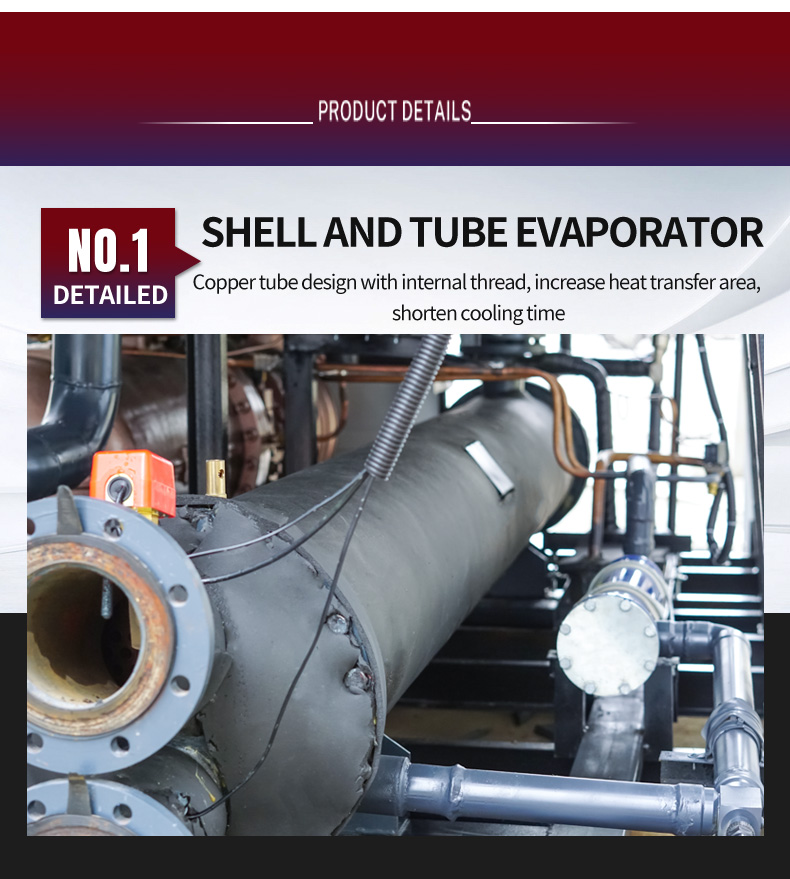

Tube and Shell Evaporate	Type	Shell and Tube
	Water Volume(L/Min)	200	400	400	500	600	600	650	900
	Inlet/Outlet (DN)	50	65	80	80	100	100	125	150
Circulating Pump	Power(KW)	2.2	4	5.5	7.5	11	11	11	11
	Convey Water（M）	18
	Brand	Auyuan
Whole Machine	Weight（KG）	880	1380	1380	1950	2800	2950	3100	4000
Whole Machine	Dimension（CM）	201017801100	241018301960	241018301960	278019002350	335022001910	400022001910	450022002300	490022002300
6 Safety Protections	Compressor Overheat Protection	High & Low Voltage Protection	Frost Protection	Phase Reverse Protection	Pump Overload Protection		Earth Leakage Protection
